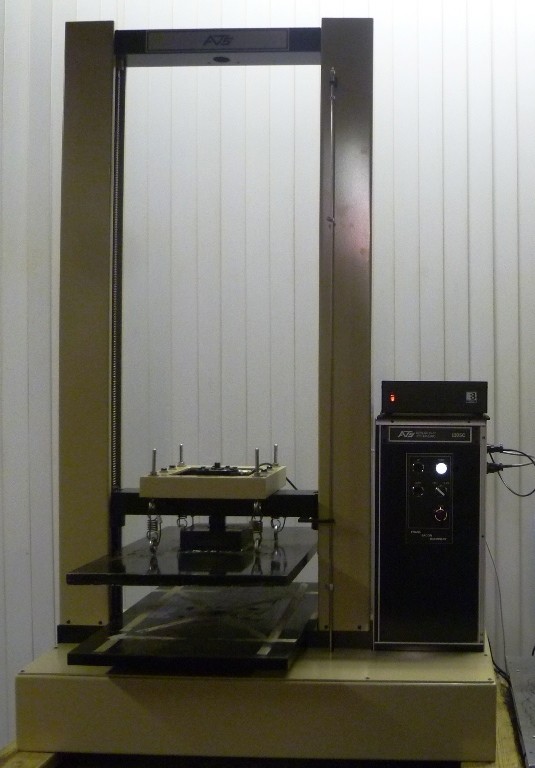

1,125 lbf (5 kN) ATS Series 1101 Tension and Compression Machine

(1) USED 1,125 lbf (5 kN) Capacity ATS, Series 1101, Two Ball Screw Drive, Electro-Mechanical Tension and Compression Testing Machine, S/N 900544-2-90

SPECIFICATIONS:

Tension Testing Opening (Less Tooling): 42"

Compression Testing Opening (Less Tooling): 42"

Distance Between Columns/Screws: 14"

Testing Stroke: 42"

Table Size (W x D): 14" x 6"

Testing Speed (IPM): 0.2 to 20.0

Crosshead Adjusting Speed (IPM): Up to 20 IMP

Approximate Overall Dimensions:

Load Frame (W x D x H): 39" x 17" x 66"

Approximate Weight (Lbs): 650 lbs

Electrical Requirements (V,Hz,PH,A): 115 V, 60 Hz, 1Ph, 10A

EQUIPPED WITH:

  • eP2 Microprocessor/Digital Indicator (Load, Position & Strain)
  • Gauge Safe Live Software for Live Graphical Display, Data Acquisition & Management
  • Interface 1,000 lbf Universal Load Cell

FOB Warren, MI

Reconditioned/Retrofitted with Warranty
