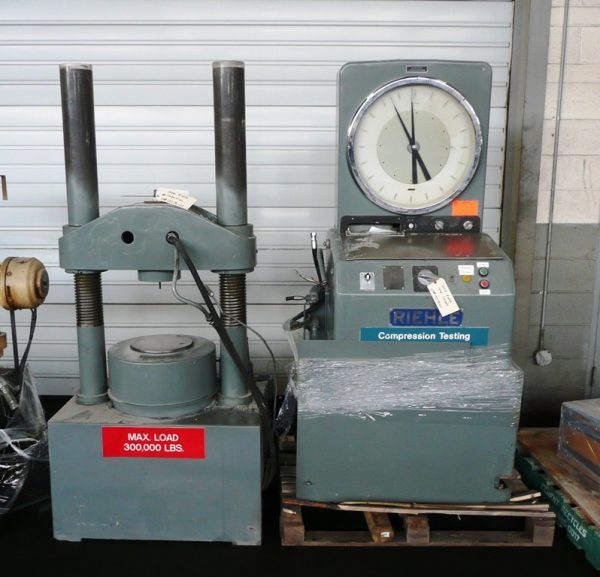

300K Riehle Compression Testing Machine

(1) USED 300,000 lbf Capacity Riehle, Hydraulic Compression Testing Machine. S/N R-78374


Compression Testing Opening (Less Tooling): 29"

Distance Between Columns/Screws: 19"

Testing Stroke: 6"

Table Size (Diameter):  10"

Testing Speed (IPM): 0 – 1

Crosshead Adjusting Speed (IPM): 9

Approximate Overall Dimensions:

Standard Hydraulic Console (W x D x H): 24" x 34" x 72"

Load Frame (W x D x H): 34" x 34" x 72"

Approximate Weight (lbs): 8,000

Electrical Requirements (V,Hz,PH): 220/440, 60, 3


  • Dell, OpiPlex 3050 Intel i5-7500 CPU 3.41GHz Computer (500 GB H.D., 4.0 GB Ram), 16X DVD+/-RW SATA Drive, Dell Wireless Key Keyboard & Mouse
  • 24" LED-Backlit LCD Color Monitor or Better & Manual
  • Microsoft Windows 10 Professional, Workstation
  • MTESTQuattroTM, Material Testing Software for Data Acquisition (load, position, 2 strain & aux), Analysis and Computer Controlled Testing with Manual.
  • MTESTQuattroTM, Micro console for sensor excitation and analog/digital signal processing with USB Cable.
  • Celesco, High Resolution TTL compatible incremental quadrature Encoder for position and testing speed values with signal cable and mounting hardware.
  • Precision Pressure Transducer for load values with signal cable and mounting.
  • Reconditioned Riehle Manually Controlled Hydraulic Pumping System

FOB Warren, MI

Reconditioned/Retrofitted & Certified

1 Year Parts and Labor Warranty
