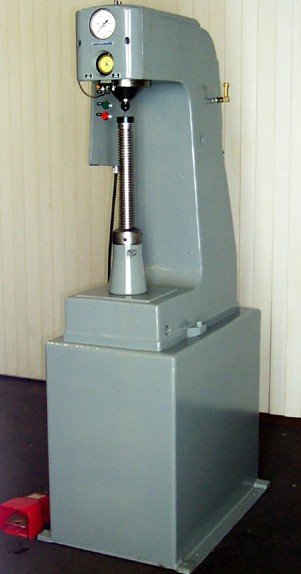

Detroit Model DH-2 Brinell Hardness Tester

Detroit Model DH-2 Brinell Hardness Tester

(1) USED Detroit, Model DH-2, Hydraulic Brinell Hardness Tester.  S/N 702

Detroit Model DH-2

SPECIFICATIONS:

Major Brinell Loads(Kgs): 500 – 3000

Standard Vertical Work Height: 12"

Throat Depth: 9"

Maximum Test Stroke: 7/16"

Approximate Overall Dimensions (W x D x H): 17" x 50" x 66"

Approximate Weight(Lbs): 1,000

Electrical Requirements(V,Hz,Ph): 120/240, 60, 1

Air Requirement(Psi):  --

EQUIPPED WITH:

  • 10mm Diameter Ball Indentor
  • Flat Anvil
  • Base Mounted Stand/Table
  • Hand Operated Control/Switch
  • New Hydraulic Pump & Motor

OPTIONAL ACCESSORIES (at additional costs)

FOB Warren, MI

Reconditioned & Certified
