Gogan Brake Line Testing System Model 911

(1) USED Gogan, Model 911, Direct Reading High Production Hydraulic Brinell Hardness Tester with EX-1473 Brake Lining Testing System (meets SAE J379 requirements).

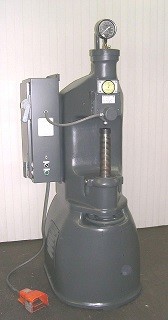

Gogan Model 911

SPECIFICATIONS:

Major Brinell Loads(Kgs):1500 or 3000

Standard Vertical Work Height: 9"

Throat Depth: 4.5"

Maximum Test Stroke:  7/16"

Approximate Overall Dimensions (W x D x H): 30" x 34" x 74"

Approximate Weight(Lbs): 1200

Electrical Requirements(V,Hz,Ph): 480, 60, 3

EQUIPPED WITH:

  • Brinell Chart
  • Go—No Go Dial Gauge
  • 1 ½" Diameter Flat Anvil
  • ¾" Brake Lining Penetrator
  • Foot Operated Control/Switch

1 Year Parts and Labor Warranty

FOB Warren, MI

Reconditioned & Certified
