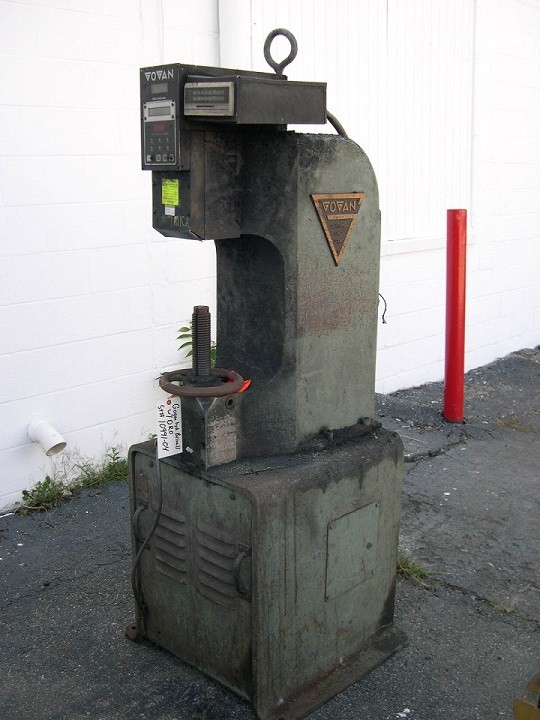

Gogan Model 712B Brinell Hardness Tester

(1) USED Gogan, Model 712B, Direct Digital Reading High Production Floor Standing Hydraulic Brinell Hardness Tester. SN M-18950-1

Gogan Model 712B

SPECIFICATIONS:

Major Brinell Loads(Kgs): 500 to 3000

Standard Vertical Work Height: 12"

Throat Depth: 7"

Maximum Test Stroke: 1.0"

Approximate Overall Dimensions (W x D x H): 27.5" x 25.5" x 70"

Approximate Weight(Lbs): 1100

Electrical Requirements(V,Hz,Ph):  480, 60,3

Air Requirement(Psi):

EQUIPPED WITH:

  • Gogan Direct Reading System
  • 10mm Diameter Ball Indentor
  • Flat Anvil
  • Foot Operated Control/Switch

FOB Warren, MI

Reconditioned & Certified
