Instron Fatigue Testing System

110 kN (25 KIP) Instron 8521S Axial-Torsional Fatigue Testing System

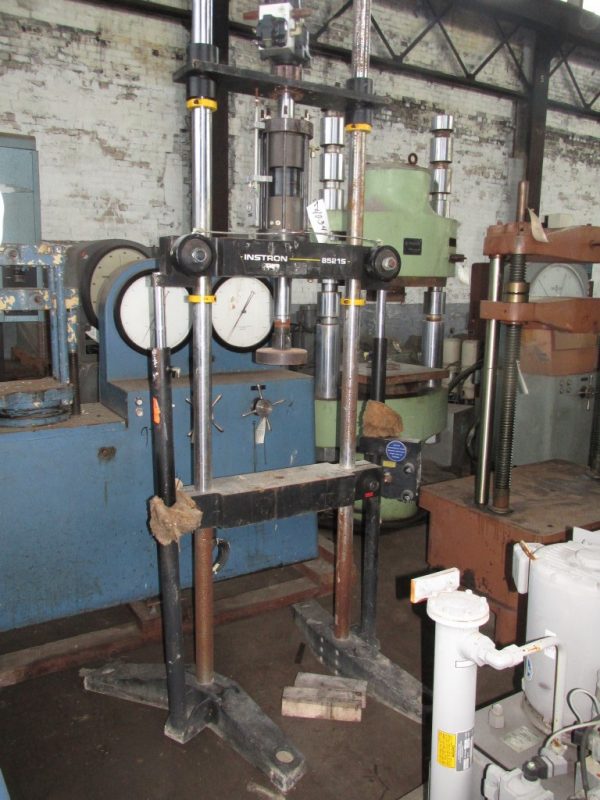

(1) USED Instron 110 kN (25 KIP) Axial & 1000 N-m (10kip-in) Torsional Capacity, Model 8521S Axial-Torsion Servo-hydraulic Fatigue Testing System. S/N 003

Instron Axial & Torsion Model 8521S

SPECIFICATIONS:

System ID Number: 8521-C7652 / AW3844-4

Force Capacity: 110 kN (25KIP)

Torque Capacity: 1000 N-m(10kip-in)

Number of Columns: 2

Distance Between Columns: 22"

Maximum distance between load cell and table:  65”

Column Diameter: 2.5”

Approximate Overall Dimensions (W x D x H): 41" x 39" x 120" max hgt

Approximate Weight (lbs): 2,000 lbs

EQUIPPED WITH:

  • Hydraulic Lifts and Controls
  • Instron 3000 PSI 110 kN, 100 mm  Stroke, Hydrostatic  Actuator, Model A484-236, LVDT, S/N 1044, Area = 8.24 in2, Moog servo valve Model 760-1000A S/N 120
  • ROTAC 10,950 in/lbs, 100 0  rotation, Rotary Actuator, Model 2610-5582, S/N 97 0716 03, Vol. 62.61cm³/Rad, Moog servo valve Model 760-1000A,  S/N 122
  • Instron Model A440 83A 3000 PSI 6.9 GPM 15 HP Hydraulic Power Supply, S/N 97 9337 with 1,200 Hours

FOB Warren, MI

Reconditioned with 90 Day Parts and Labor Warranty
