MTS Fatigue Testing System

20 KIP MTS Fatigue Testing System

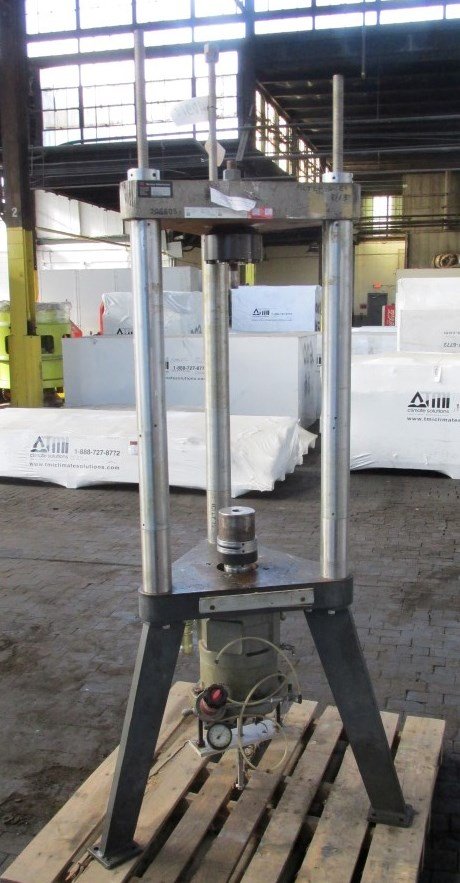

(1) USED 20 KIP Capacity MTS Material Fatigue Testing Frame.

MTS Frame

SPECIFICATIONS:

Capacity (KIP): 20

Number Of Columns: 3

Distance Between Columns: 16"

Test Specimen Max. Length: 36" (Can Be Modified)

Column Spacers: 6.5”, 10”, 20”

Table Size (Triangle): 24” x 24” x 24” x 3” thick

Top Cross Head Size (Triangle): 24” x 24” x 24” x 3 3/8” thick

Approximate Overall Dimensions (Triangle x H): 36” x 36" x 36" x 85"

Approximate Weight (lbs): 2,500

EQUIPPED WITH:

  • Adjustable Columns (Spacers: 6.5”, 10”, 20”)
  • MTS 20 KIP  Model 201.04  69, 2000 PSI 3" Stroke Actuator with LVDT & Area = 9.8 in.2
  • Moog Servo Valve, Model 73-102, S/N 144
  • 22K MTS, Model 661.20 E03, Fatigue Rated Load Cell, S/N 63017

FOB Warren, MI

Reconditioned with 90 Day Warranty
