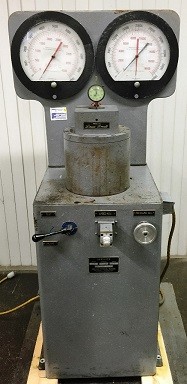

30K Tinius Olsen Ductomatic A-12 Sheet Metal Ductility Testing

(1) USED, 30,000 lbf Capacity Tinius Olsen Ductomatic, Model A-12, Sheet Metal Ductility Testing Machine, Upgraded with a New Digital Display Microprocessor.  S/N 154833

Tinius Olsen Ductomatic

SPECIFICATIONS:

Capacity (lbs): 30,000

Range (lbs): 0-30,000

Maximum Specimen Thickness:.375"

Approximate Dimensions (W x D x H): 22" x 31" x 45"

Approximate Weight (lbs): 1,000

Electrical Requirements (V,Hz,Ph): 220/440, 60, 3

EQUIPPED WITH:

  • Retrofitted with New eP2 Digital Indicating System Providing: Peak Load Detection, Peak Load & Real Time Load Display, Automatic Electronic Shut-Off at Break and Cup Height Detection & Display
  • Retrofitted with New Pressure Transducer for Load Values
  • Retrofitted with New Optical Encoder for Position Values
  • Clamping Pressure Gauge & Control
  • Testing Speed Control
  • Adjustable Automatic Cup Height Stop
  • One (1) Standard Bottom Die and one (1) Upper Die
  • One (1) 0.875" Diameter Ball Indenter

FOB Warren, MI

Reconditioned & Retrofitted with a 1 Year Parts & Labor Warranty
