Tinius Olsen Air-O-Brinell

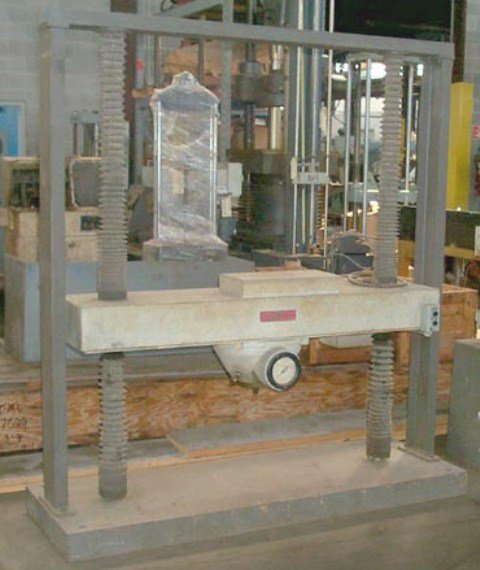

Tinius Olsen Air-O-Brinell 3B Hardness Tester

(1) USED Tinius Olsen Air-O-Brinell, Model 3 B, Two Screw Motorized Pneumatic Brinell Hardness Tester. S/N 137397

Tinius Olsen Air-O-Brinell Model 3B

SPECIFICATIONS:

Major Brinell Loads (Kgs): 500 – 3000

Standard Vertical Work Height: 0" –  48"  Motorized

Throat Depth: N/A

Maximum Test Stroke: .5"

Approximate Overall Dimensions (W x D x H): 72" x 30" x 79"

Approximate Weight (lbs.): 3,200

Electrical Requirements (V,Hz,Ph): 220/440, 60, 3

Air Requirement (Psi): 65 min.

EQUIPPED WITH:

  • 10mm Diameter Ball Indentor
  • Hand Operated Control/Switch
  • Workpiece Table(W x D): 48" x 24"

FOB Warren, MI

Reconditioned & Certified
